Molino Triturador de Plástico Universal Serie ZPC
Versatile plastic crusher for all types of plastic crushing applications. Produces uniform 6-20mm regrind with interchangeable screen mesh. Available in 6 models from 11kW to 45kW with flat blade design.
Especificaciones Técnicas
| Model | ZPC-500 | ZPC-600 | ZPC-700 | ZPC-800 | ZPC-1000 | ZPC-1200 |
|---|---|---|---|---|---|---|
| Motor Power | 11 kW | 15-18.5 kW | 18.5-22 kW | 22-30 kW | 30-37 kW | 37-45 kW |
| Rotor Speed | 580-650 RPM | |||||
| Blade Type | Flat (Paddle) Type — SKD-11 | |||||
| Rotor Blades | 9 pcs | 12 pcs | 15 pcs | 18 pcs | 21 pcs | 24 pcs |
| Stationary Blades | 2 pcs | 2 pcs | 3 pcs | 4 pcs | 4 pcs | 6 pcs |
| Screen Mesh | 6-20 mm (Interchangeable) | |||||
| Throughput | 150 kg/h | 200 kg/h | 300 kg/h | 300-500 kg/h | 500-700 kg/h | 700-1000 kg/h |

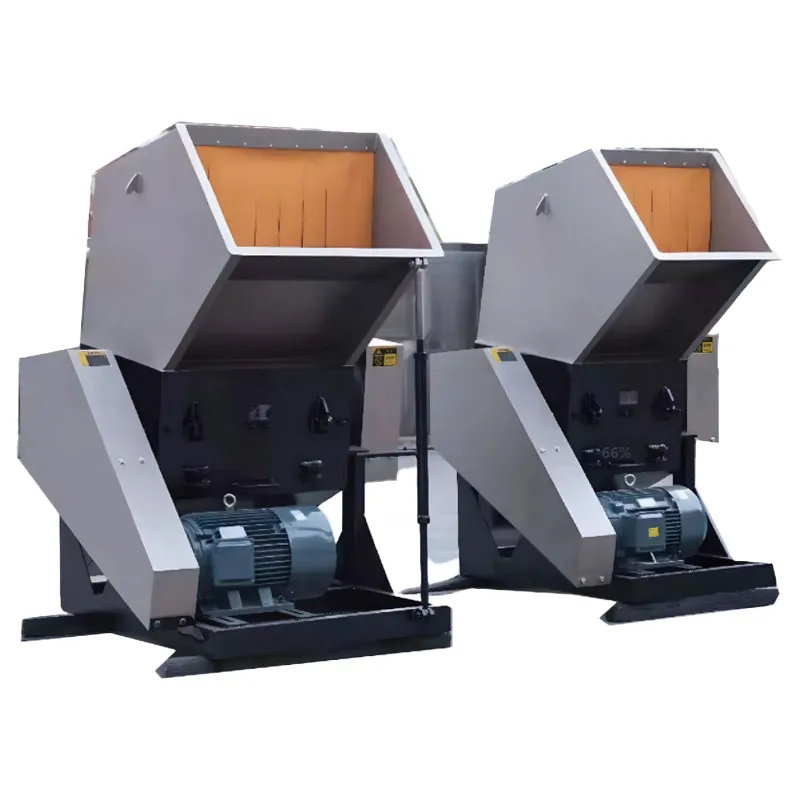

Universal Plastic Crusher ZPC Series
The ZPC series universal crusher granulator is designed for comprehensive plastic crushing applications. Its flat-blade rotor design delivers clean, uniform regrind across a wide variety of thermoplastic materials from soft films to rigid containers. With 6 model sizes and interchangeable screen mesh, it adapts to diverse production requirements.
Key Features
- Flat paddle-type blade geometry for versatile material handling
- SKD-11 hardened steel blades with reversible cutting edges for extended life
- Quick-release screen for easy mesh changes between material types
- Belt-driven rotor with shock-absorbing pulley system for smooth operation
- Adjustable stationary blades for maintaining optimal cutting clearance (0.3-0.5mm)
- Compact footprint for space-constrained production floors
- Optional soundproof hopper and vacuum loading system
Processing Materials
All types of waste plastics including PET bottles, PE/PP films and bags, PVC pipes and profiles, HDPE containers, injection molding sprues and runners, blow molding bottles, sheet edge trim, general plastic scrap.
Applications
Injection and blow molding in-line recycling, film and bag recycling, PET bottle crushing, general plastic scrap processing, small-to-medium recycling operations.
