Triturador de Plástico Combinado de Eixo Único/Duplo Série ZDS
Versatile combo shredder combining single and double shaft technology for efficient processing of films, woven bags, jumbo bags, ropes, non-woven fabric, and municipal solid waste. Available in 5 models with dual motor drive.
Especificações Técnicas
| Model | ZDS-600 | ZDS-800 | ZDS-1000 | ZDS-1300 | ZDS-1500 |
|---|---|---|---|---|---|
| Motor Power | 22kW×2 | 37-45kW×2 | 45-55kW×2 | 75-90kW×2 | 110-132kW×2 |
| Shaft Speed | 16-24 RPM | ||||
| Blade Material | SKD-11 Alloy Steel | ||||
| Throughput | 500 kg/h | 700 kg/h | 1000 kg/h | 1300 kg/h | 1800 kg/h |
| Output Size | 40-120 mm (adjustable blade spacing) | ||||
| Drive System | Dual Planetary Gear Reducer | ||||

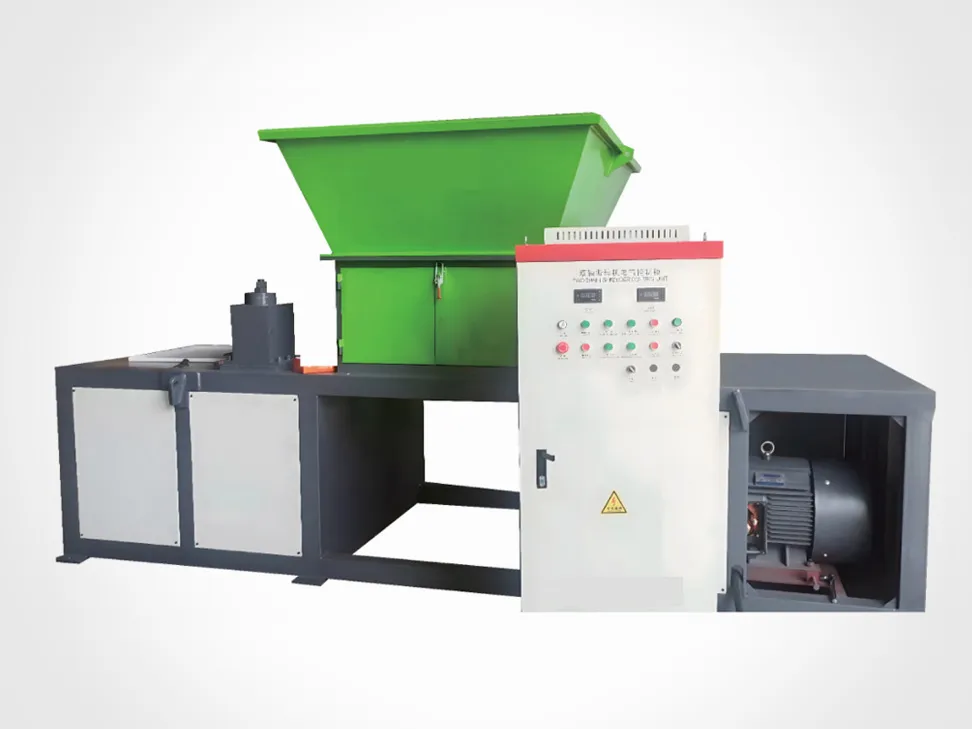

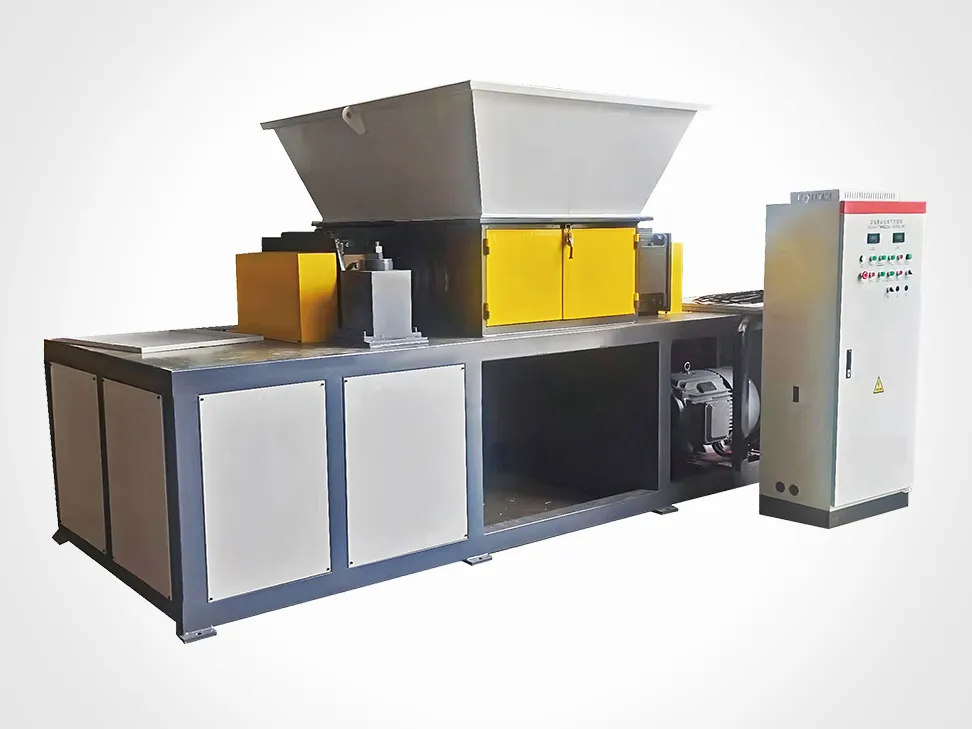

Combo Single/Double Shaft Shredder ZDS Series
The ZDS series combo shredder combines the material handling flexibility of a single shaft design with the aggressive cutting power of a double shaft configuration. This hybrid approach delivers efficient size reduction for films, bags, fabrics, and municipal waste that would be challenging for either design alone.
Key Features
- Dual independent motor drive system for balanced torque distribution

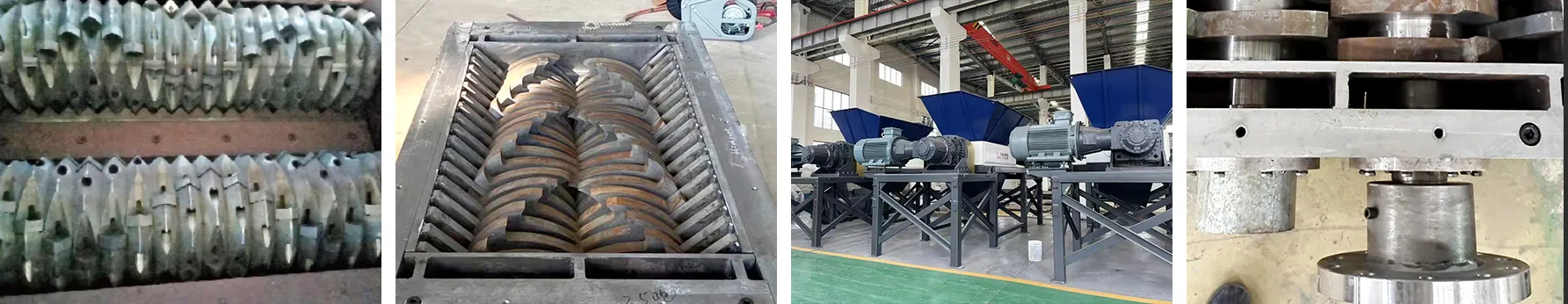

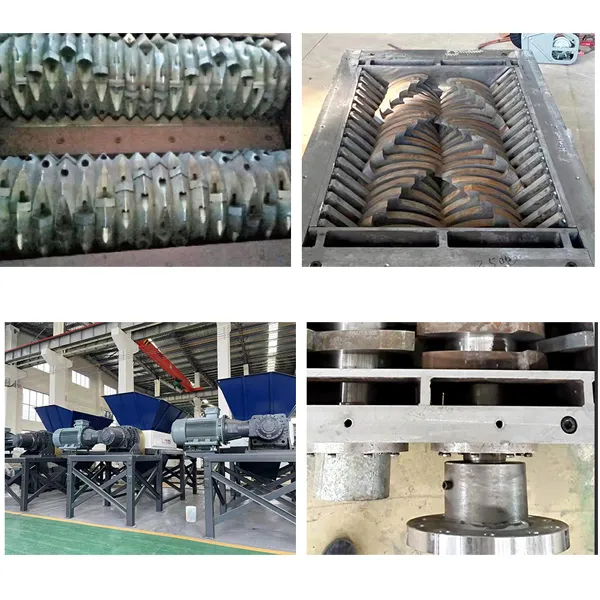

- SKD-11 alloy steel blades with long service life and reversible cutting edges
- Automatic reverse rotation on overload to prevent blade damage
- Low-speed high-torque design minimizes noise and dust generation
- Siemens PLC touchscreen control panel with real-time load monitoring
- Heavy-duty planetary gear reducer for reliable 24/7 operation
- Hopper with integrated safety screens and emergency stop system
Processing Materials
Plastic films, jumbo bags (FIBC), woven bags, waste fibers, plastic ropes, non-woven fabric, chemical fiber filament, municipal solid waste (MSW).
Applications
Film and bag recycling facilities, textile waste processing, municipal solid waste pre-treatment, agricultural film recycling, post-consumer packaging waste.
Interessado Nesta Máquina?
Conte-nos seu tipo de material, capacidade desejada e tamanho de saída — nossa equipe fornecerá uma recomendação e cotação personalizada.
